Silo / Tank / Hopper Weighing

Description

TSWI2* TSWI1 TSWI13 TSWI5

For communication with external systems, several different protocols are available.

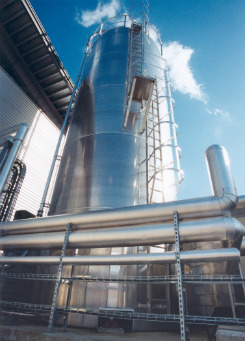

Silo with Thames Side load cells

By installing a silo, tank, hopper, bin or bunker on top of load cells, the weight of the contents can be determined (in kilograms or tonnes) with a very high accuracy (from approximately 0.1%) and easily passed to external data systems.

Silo, tank, hopper, bin or bunker weighing systems are generally used to determine the amount of material emptied into a truck and/or for inventory management. It is often very important to know the amount of material stored in a silo at any time.

Typical materials that are stored in silos/tanks/hoppers:

  • Food and drink ingredients, e.g. wheat, flour, glucose syrup, grain, ethanol, fruit juices, edible oils such as olive oils
  • Plastic pellets
  • Biomass pellets
  • Fertilizers
  • Minerals and mined products, e.g. charcoal, sulphur, nickel, copper, iron ore
  • Paint
  • Concrete and cement

Our Solutions

During the installation of load cells under a silo, hopper or tank there is the potential for the load cells to be damaged accidentally by welding processes or shock loading when the silo is lowered onto the weighing modules, for example. We offer solutions that minimise this risk.

– For silos and hoppers weighing up to approx. 100,000kg (100 tonnes):

Thames Side offers the unique, patented LeverMount® and MasterMount® weighing modules, which are the industry benchmark for a repeatable, fit-and-forget weighing solution that makes the installation simpler, faster, safer and reduces the chances of load celldamage. No hydraulic jacks, or other lifting tools, are needed during the installation ­ because these unique weighing modules have an integral mechanism to lift the silo into the raised position whilst the load cell is installed ­ then lower the silo into the weighing position. This can all be donewhen the silo is full of product so production processes do not need to stop.

LeverMount®MasterMount®

– For silos and tanks weighing more than approx. 100,000kg (100 tonnes):

The VC3500 is an extremely robust load cell with high accuracy and repeatability, a very strong weighing module and a long history of dependable performance.  It is the world benchmark silo weigh module.

The T30 is an integrated load cell and weighing module, enabling very fast and simple installation whilst accommodating significant vessel movement due to thermal expansion and contraction.

The T34 Silo Mount provides a cost-effective, OIML R60 C4 and NTEP Class IIIL approvedweighing assembly up to 60 tonnes capacity per leg, with up to 1,000,000kg capacity per leg also available.



VC3500T30T34 Silo Mount

Background Information

Silos with Thames Side load cells

Silos with Thames Side load cells



A silo weighing system normally consists of three or four load cells, each with a weighing module, a junction box and a weight indicator or transmitter. The weighing module ensures that the correct amount of vertical force is applied to each load cell, preventing it from being affected by non-vertical forces and ensuring repeatability of its signal output. The junction box joins the wires from the individual load cells in a watertight manner and averages the millivolt (mV) signals from the load cells to create a combined mV value that is sent to the input terminals of the weight indicator or transmitter with the minimum possible level of electrical noise. This, in turn, will have several communication options to send the weight to a PLC or PC.

The weighing system can be calibrated by filling the silo with a known weight of the stored material, placing or hanging certified test weights on the silo, or making use of the “theoretical calibration” function of the weight indicator or transmitter (where available).  The “theoretical calibration” method uses the average (mean) sensitivity of the load cells (in millivolts per volt, or mV/V) to determine the mV signal that is sent to the weight indicator at specific values of applied weight.

Many of our local weighing system Partners, who are experts in their field, will be able to supply calibration services if you wish to have any silo weighing systems calibrated or certified.
